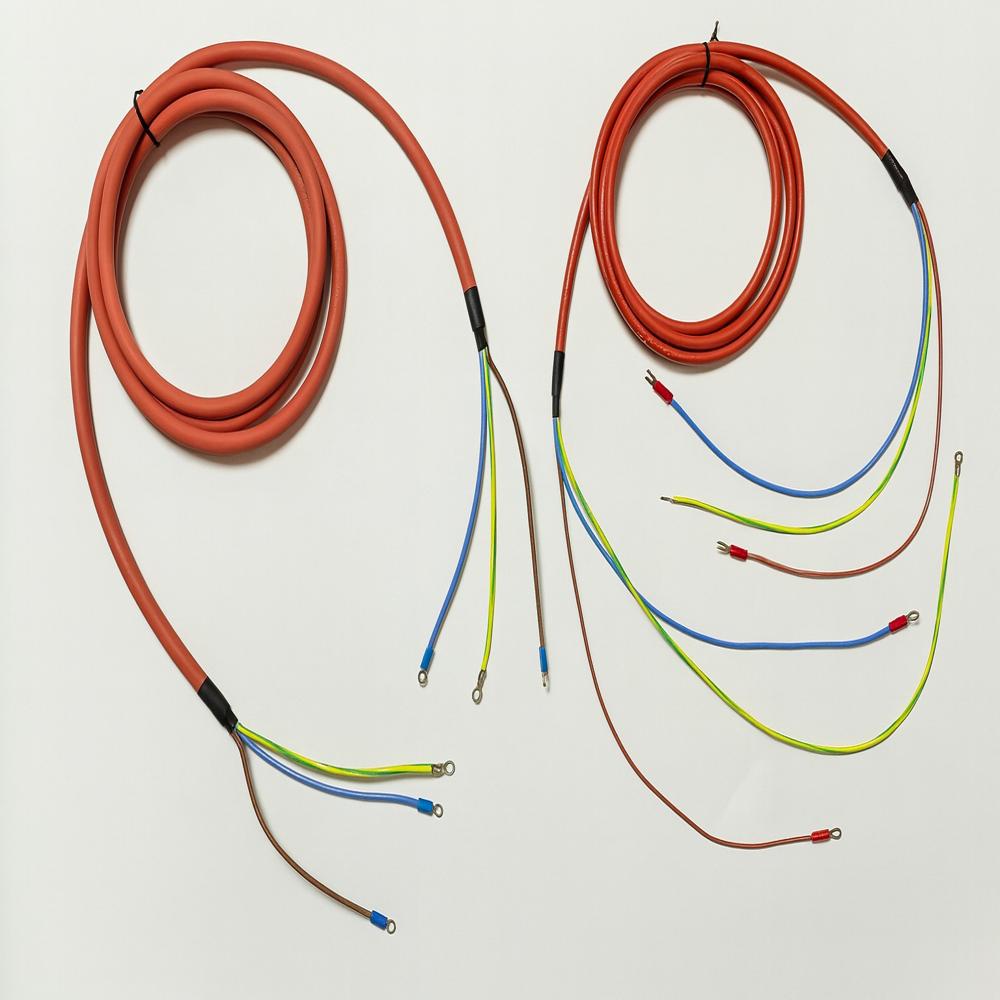

Petrol Pump Dispenser Wiring Harness

Name: Petrol Pump Dispenser Wiring Harness
Brand: HARNESS TECHNIQUES (I) PVT. LTD.
Price: 750.0 INR
Availability: InStock

Price 750.0 INR/ Number

Get a Price/Quote

Petrol Pump Dispenser Wiring Harness Specification

Product Type
Petrol Pump Dispenser Wiring Harness

Rated Voltage
250V AC

Rated Temperature
-20C to +85C

Application
Fuel dispensing machines, petrol pump automation, industrial fuel management systems

Color
Multi-color (as per wiring code)

Molding Material
PVC/PE Insulated

Terminal
Brass/Tin-plated copper terminals

Jacket
Flexible PVC outer jacket

Conductor
Stranded copper

Connector
Custom-molded or standard automotive type connectors

Voltage Withstand Test
2000V AC/1min

Insulation Resistance
>100 M/km at 20C

Flame Retardancy
Complies with UL94V-0

RoHS Compliance
Yes

Cable Length
Customizable up to 3 meters or as required

Operating Frequency
DC & AC up to 60Hz

Wire Gauge
18AWG to 24AWG

Shielding
Optional; Aluminium foil shielding for EMI protection

Moisture Resistance
High; suitable for outdoor and indoor petrol pump environments

Petrol Pump Dispenser Wiring Harness Trade Information

Minimum Order Quantity
500 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
100000 Per Month

Delivery Time
7 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Asia, Africa

Main Domestic Market
All India

About Petrol Pump Dispenser Wiring Harness

The Petrol Pump Dispenser Wiring Harness is a precisely engineered electrical assembly designed to connect and manage the internal electrical systems of fuel dispensing units. It ensures safe and reliable power distribution and signal transmission between key components such as the control panel, display unit, sensors, pump motor, solenoid valves, meters, and safety systems.

Manufactured by Harness Techniques (I) Pvt. Ltd., this wiring harness is developed using high-quality conductors, durable insulation materials, and secure connector assemblies to ensure long service life and dependable performance in demanding petrol pump environments.

The harness is custom-built as per the specific model and wiring layout of the fuel dispenser, ensuring accurate fitment, easy installation, and reduced risk of electrical faults.

Key Features

Custom-designed as per dispenser model requirements
High-quality copper conductors for stable power flow
Heat, vibration, and abrasion-resistant insulation
Secure terminal crimping and connector locking system
Organized cable routing for improved safety and maintenance
Tested for continuity and performance before dispatch

Applications

Petrol pump fuel dispensers
Fuel station control panels
Pump motor connections
Display and metering systems
Sensor and safety circuit wiring

Frequently Asked Questions (FAQs)

Q1: What is a petrol pump dispenser wiring harness?

It is a bundled assembly of wires, connectors, and terminals designed to connect various electrical components inside a fuel dispenser for proper power supply and signal communication.

Q2: Why is a wiring harness important in a fuel dispenser?

It ensures organized wiring, reduces installation errors, improves safety, minimizes electrical faults, and enhances overall system reliability.

Q3: Is the harness standard or customized?

Petrol pump dispenser wiring harnesses are generally customized according to the specific dispenser model and electrical layout requirements.

Q4: What materials are used in the harness?

It typically uses high-grade copper wires, durable insulation sleeves, protective tapes or conduits, and quality connectors to ensure long-lasting performance.

Q5: Can this harness withstand harsh petrol pump conditions?

Yes, it is designed to resist heat, vibration, and mechanical stress commonly found in fuel station environments.

Q6: How is the harness installed?

Installation involves connecting designated connectors to matching dispenser components as per the wiring diagram. It should be installed by a qualified technician.

Q7: Can the wiring harness be repaired?

Minor issues like connector replacement can be repaired, but major damage or modification should be handled by professionals to maintain safety standards.

Superior Safety and Reliability

Designed to comply with UL94V-0 flame retardancy standards, this wiring harness offers exceptional protection against fire risks in challenging petrol pump environments. Its high insulation resistance and dielectric strength contribute to safe and reliable fuel dispensing operations, even under fluctuating temperatures or humidity.

Customizable Engineering for Your Application

This wiring harness offers a range of wire gauges from 18AWG to 24AWG and can be customized in length up to 3 meters or as required. Whether for indoor automation systems or outdoor industrial fuel management, enhanced moisture resistance and optional EMI shielding ensure stable performance and installation flexibility.

FAQ's of Petrol Pump Dispenser Wiring Harness:

Q: How is the Petrol Pump Dispenser Wiring Harness installed in fuel dispensing systems?

A: Installation typically involves connecting the harness's multi-colored, coded wires to the corresponding control and sensor circuits of the fuel dispensing machine using either custom-molded or standard automotive connectors. The flexible PVC outer jacket simplifies routing, and instructions are provided based on the specific dispenser model.

Q: What are the primary benefits of using this wiring harness in petrol pump applications?

A: This harness offers high safety with its UL94V-0 flame retardant insulation, excellent moisture resistance for outdoor and indoor use, robust EMI shielding (optional), and reliable performance over a voltage range up to 250V AC. Additionally, it's RoHS-compliant and highly customizable for various operational needs.

Q: When should I opt for aluminium foil shielding in the wiring harness?

A: Aluminium foil shielding should be chosen when your fuel dispensing system operates in areas with high electromagnetic interference (EMI), such as near heavy-duty motors, high-voltage equipment, or communication towers. Shielding helps improve signal integrity and minimizes operational disruptions.

Q: Where can this wiring harness be used apart from petrol pumps?

A: While it's specifically designed for petrol pump dispensers, the harness is also suitable for industrial fuel management systems, petrol pump automation units, and any application requiring robust, flame-retardant, and moisture-resistant wiring with flexible configuration options.

Q: What is the process for customizing the cable length or connector type?

A: To customize the length or connector, you can provide your requirements (up to 3 meters or as needed) and preferred connector style (standard automotive or custom-molded) to the manufacturer or supplier. The harness will be produced according to your specifications, ensuring a perfect fit for your application.

Q: How does the product ensure safety in hazardous environments?

A: It ensures safety through its high insulation resistance (>100 M/km at 20C), flame retardancy, robust moisture resistance, and voltage withstand capability (2000V AC for 1 minute). These features help prevent electrical faults and improve operational reliability in hazardous petrol pump settings.
